How to Maximize Land Use While Strictly Preventing Cross Infection

In modern poultry farming, early-stage farm planning is not optional—it is decisive. A well-designed layout directly impacts long-term profitability, operational efficiency, and disease control. For farmers operating in regions with limited land resources and higher disease risks, the challenge is clear:

How do you maximize land use while minimizing cross infection risk?

This article provides a structured, practical framework to help you design a farm that is efficient, scalable, and biosecure.

I. Functional Zoning: Maximize Efficiency While Eliminating Cross-Infection Paths

A scientifically planned poultry farm should be divided into four strictly separated functional zones. This structure is simple, highly effective, and particularly suitable for small and medium-sized farms.

1. Living and Office Area (Upwind Position)

• Located upwind and away from production zones
• Prevents pathogens from being introduced by staff
• Especially important in farms with frequent personnel movement

Key function: Protect production areas from human-related contamination

2. Production Area (Core Zone)

Includes:

• Brooding houses
• Layer houses
• Egg storage rooms
• Feed storage and processing areas

Design principles:

• Compact but not overcrowded
• Optimized for ventilation and workflow

Key function: Ensure efficient production under stable environmental conditions

3. Isolation Area (Downwind Position)

• Used for sick or suspected birds
• Located far from healthy flocks

Key function: Prevent disease spread and enable controlled treatment

4. Manure & Wastewater Treatment Area (Downwind Position)

• Positioned at the lowest wind direction point
• Must maintain sufficient distance from production zones

Key function: Prevent polluted air and wastewater contamination

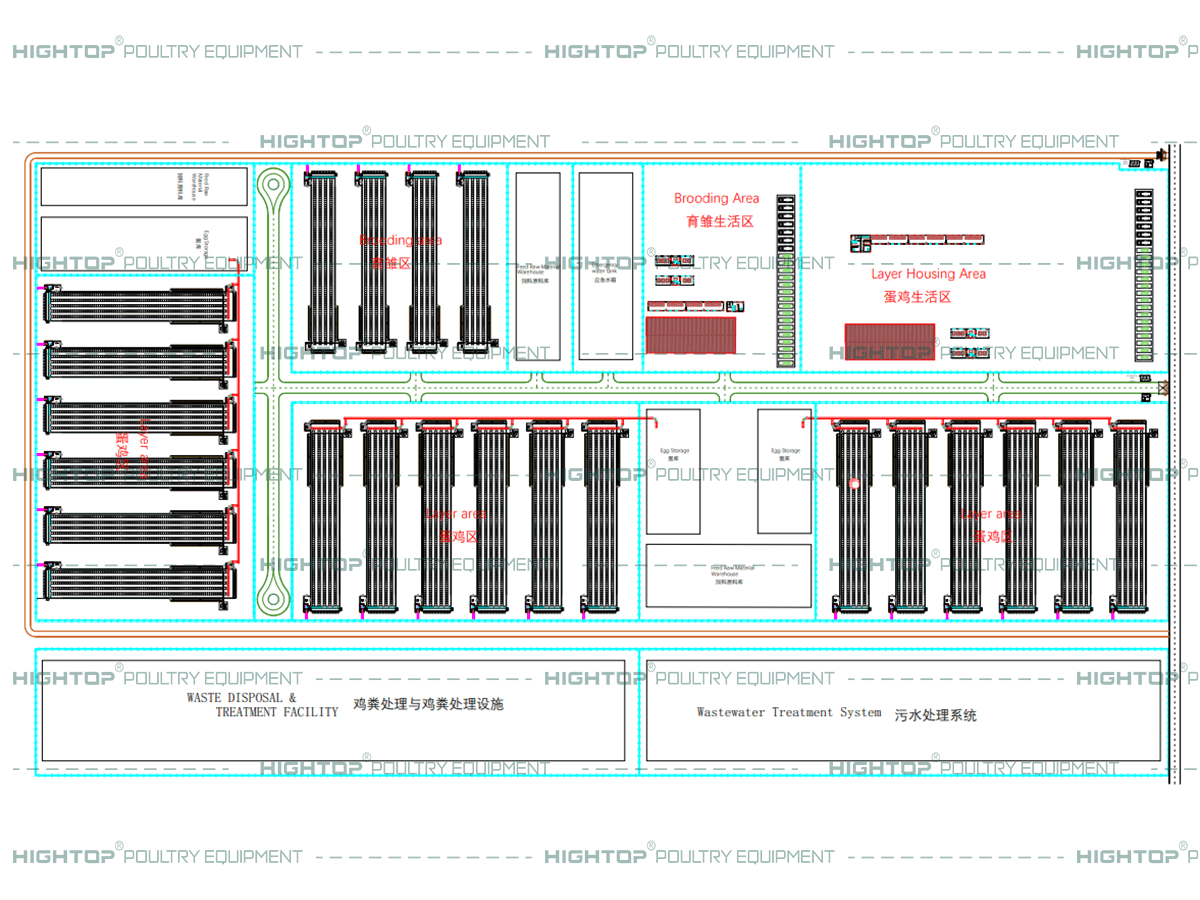

II. Chicken House Layout: High Land Utilization Without Overcrowding

Maximizing land use is not about increasing density blindly—it’s about intelligent, structured utilization.

Recommended Wind-Based Layout Sequence:

Upwind → Downwind:

• Brooding house + living area
• Layer chicken houses
• Manure and wastewater treatment area

This layout ensures:

• Clean air flows into production zones
• Contaminated air is directed away

Result: Higher efficiency + lower disease risk

III. Cross Infection Prevention: 4 Critical Control Points

Cross infection is the largest hidden cost in poultry farming. Effective prevention requires a systematic approach across four dimensions:

1. Physical Isolation

• Use walls, green belts, and disinfection channels
• Implement All-In All-Out system:
  • Same-age birds per house
  • Full cleaning after each cycle
  • Minimum 7-day downtime:
    • Cleaning → Disinfection → Drying → Resting
• Separate movement routes for:
  • Personnel
  • Feed
  • Birds
  • Manure

Goal: Zero cross-contact between contamination sources

2. Environmental Control Systems

• Ventilation system (fans + air inlets + cooling pads)
  → Reduces heat, humidity, and ammonia
• Nipple drinking system
  → Prevents water leakage and bacterial growth
• Automatic manure removal system
  → Reduces pathogen accumulation

Goal: Control disease from the source environment

3. Strict Disinfection Protocols

• Staff must:
  • Change clothes and shoes
  • Pass through disinfection procedures
• Restricted access:
  • Each worker assigned to specific houses only
• Vehicles:
  • Must pass through disinfection pools
• Supplies:
  • Disinfected before entering farm

Goal: Eliminate external contamination risks

4. Adequate Spacing Between Buildings

• Minimum distance:
  • ≥ 50 meters between brooding and layer houses
• Positioning:
  • Brooding houses → upwind
  • Layer houses → downwind

Goal: Maintain effective biological isolation

IV. Equipment + Knowledge = High-Efficiency Farming

Modern poultry farming requires integration of equipment and management systems.

1. Space Optimization with Cage Systems

• H-type layer cages:
  • Increase land use efficiency by 2–3 times
  • Ideal for large-scale farms

2. Automation Reduces Cost and Risk

• Automatic:
  • Feeding
  • Egg collection
  • Manure removal

 Benefits:

• Reduced labor cost
• Reduced human contact (lower disease risk)
• More consistent production

3. Intelligent Environmental Control

• Precise regulation of:
  • Temperature
  • Humidity
  • Lighting

 Result:

• Healthier birds
• Stable egg production

V. HIGHTOP Integrated Farm Planning Solution

HIGHTOP provides complete farm planning (EPC solutions) tailored to your land, climate, and production goals.

What We Deliver:

1. Customized Farm Layout Design

• Based on:
  • Land size
  • Climate (temperature, humidity, wind direction)
• Optimized for:
  • Land efficiency
  • Biosecurity

2. Professional Disinfection Systems

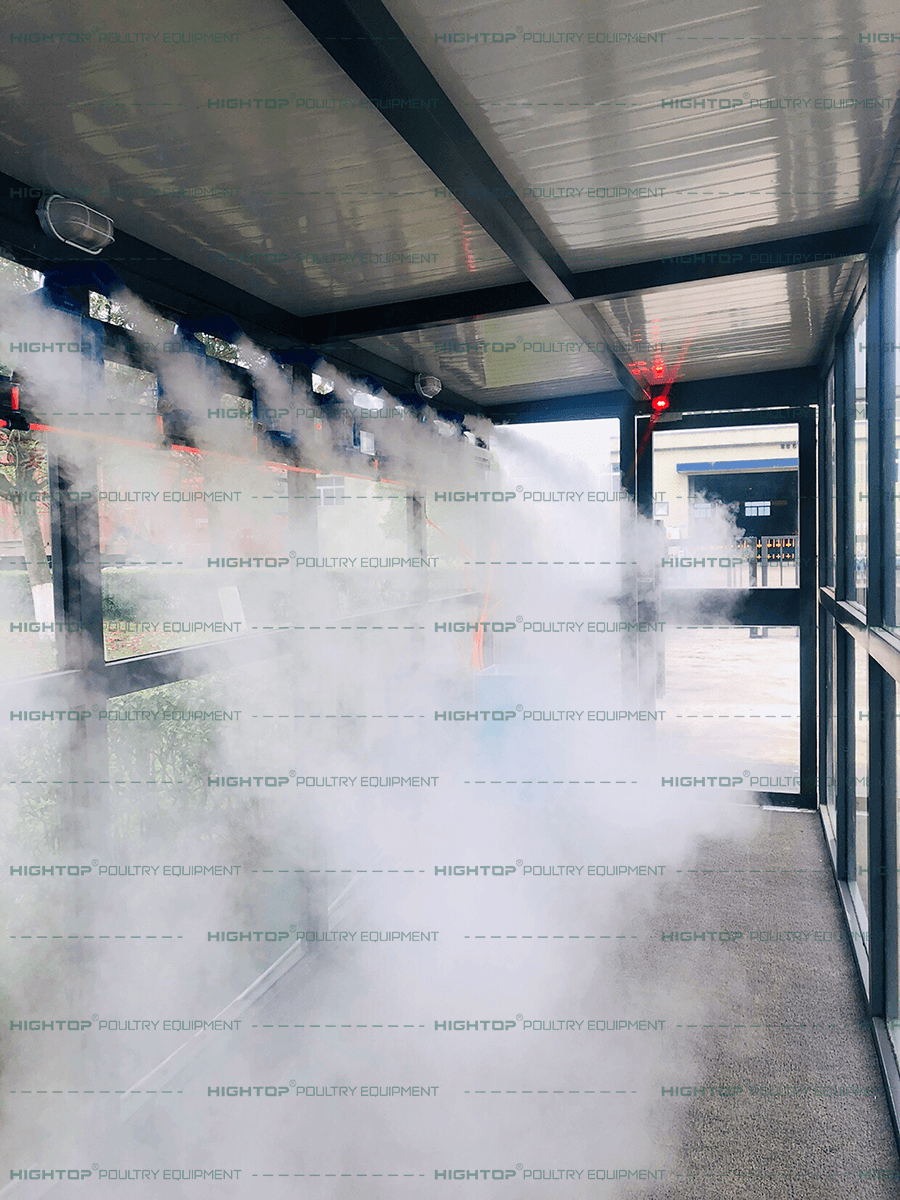

• Personnel disinfection rooms

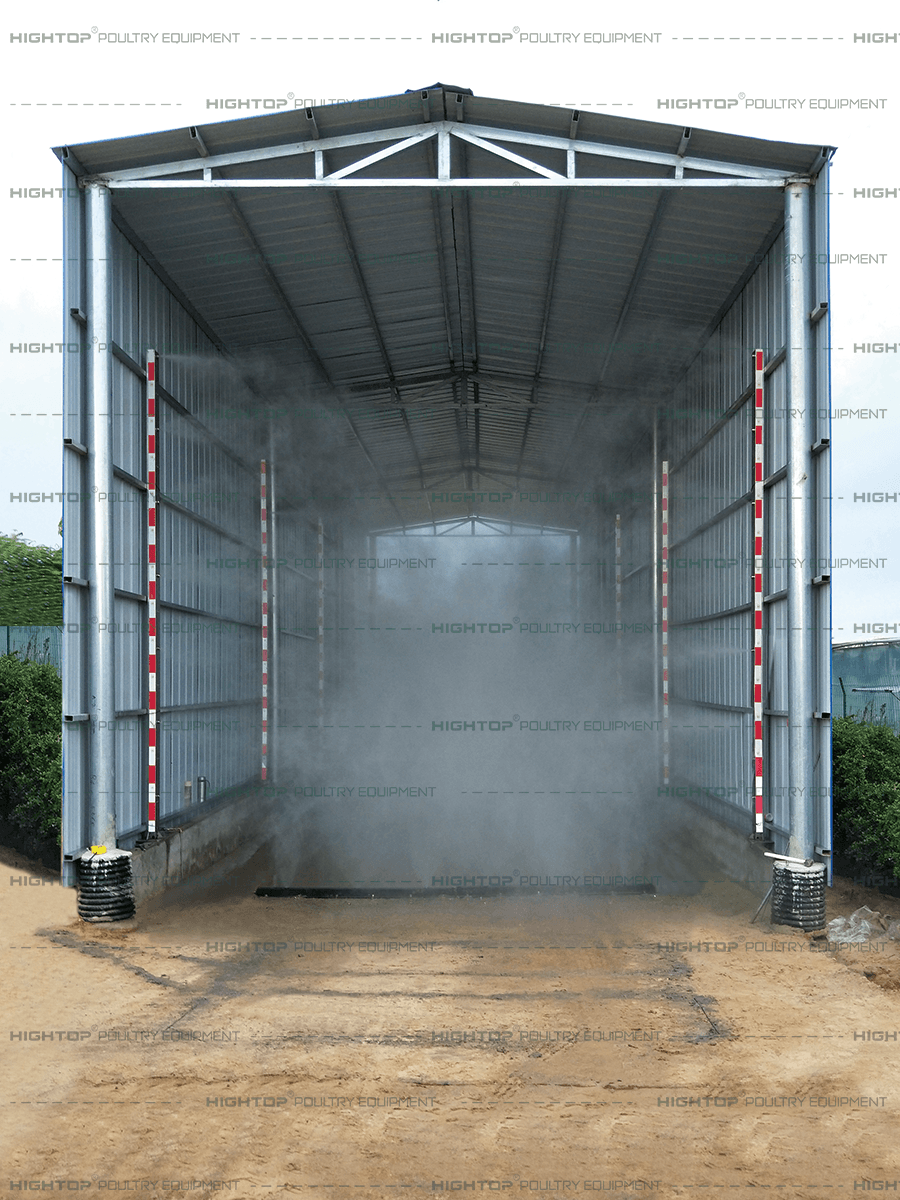

• Vehicle disinfection pools and spray systems

Eliminate infection risks at the source

3. Durable & Practical Equipment

• Designed for:
  • High temperature
  • Humid or dry environments
• Easy operation:
  • No advanced technical skills required

4. Land & Labor Saving Solutions

• Multi-tier cage systems
• Automated equipment

 Ideal for farms with limited resources

5. Region-Specific Customization

• Enhanced ventilation for hot climates
• Climate-adapted structural design

6. Energy-Saving Solutions

• Optional solar power systems
• Reduce dependence on unstable electricity supply

7. Intelligent Feeding System

• Precise feed control
• Reduce waste
• Improve feed conversion ratio

8. Reliable After-Sales Support

• Overseas warehouses
• Spare parts availability
• Technical support teams

9. High Cost Performance

• Competitive pricing
• Suitable for small and medium farms

VI. Take Action: Build a Smarter Farm Today

A successful poultry farm starts with a scientific design, not just equipment.

If you want to:

• Maximize land utilization
• Reduce disease risks
• Improve production efficiency
• Lower long-term operating costs

The first step is a professional farm layout plan.

Get Your Customized Farm Design

To receive a tailored solution, simply provide:

• Your land size
• Farm type (layers, broilers, breeders)
• Target production capacity

Our engineering team will deliver:

• Complete farm layout plan
• Equipment configuration
• Ventilation and biosecurity design
• Cost estimation
